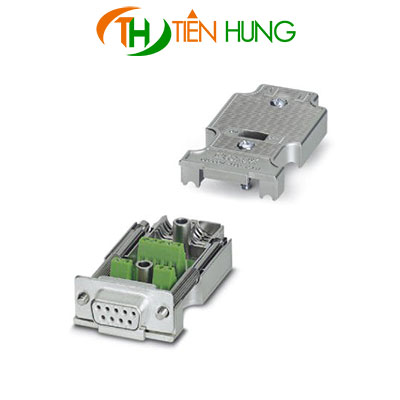

Đại lý Phoenix Contact. Đầu nối D-Sub, 9-POS. Đầu nối female, phiên bản trục với hai đầu nối dành cho dây cáp, loại phổ biến cho tất cả các hệ thống;  pin assignment: 1, 2, 3, 4, 5, 6, 7, 8, 9. Kết nối SCREW connection.

Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com):
https://www.phoenixcontact.com


Liên hệ để có giá tốt nhất:
            Mr Vũ: 0908 878 633
            Mr Hoàng: 0933 441 466
            Mr Di: 0933 744 776
Email: info@tienhungtech.com
           sales@tienhungtech.com



Dimensions

Max. cable diameter 8.4 mm
Min. cable diameter 7.6 mm
Width 17 mm
Height 31.5 mm
Length 58.2 mm

Ambient conditions

Ambient temperature (operation) -20 °C ... 75 °C
Ambient temperature (storage/transport) -25 °C ... 80 °C
Permissible humidity (operation) 10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing)
Altitude ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
Degree of protection IP30

General

Nominal voltage UN 50 V
Nominal current IN 100 mA
Bus system Universal type for all systems
Signal RS-232
  RS-422
  RS-485
Insertion/withdrawal cycles > 200
SUBCON fixing screws 4-40 UNC
Tightening torque 0.4 Nm
Torque 0.4 Nm
Housing material ABS, metal-plated
Pin assignment 1, 2, 3, 4, 5, 6, 7, 8, 9
MTTF 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
  1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
  155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)

Connection data

Connection D-SUB connection
Number of positions 9
Connection method D-SUB socket
Torque 0.4 Nm
Connection PCB connection
Connection method Screw connection
Conductor cross section flexible min. 0.14 mm²
Conductor cross section flexible max. 0.5 mm²
Conductor cross section solid min. 0.14 mm²
Conductor cross section solid max. 0.5 mm²
Min. AWG conductor cross section, flexible 26
Max. AWG conductor cross section, flexible 20
Conductor cross section AWG min. 26
Conductor cross section AWG max. 20
Stripping length 4.5 mm
