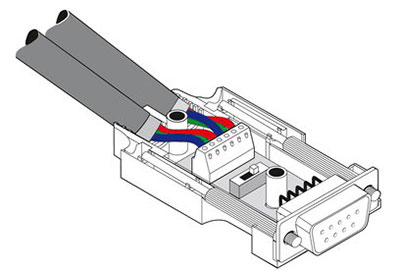

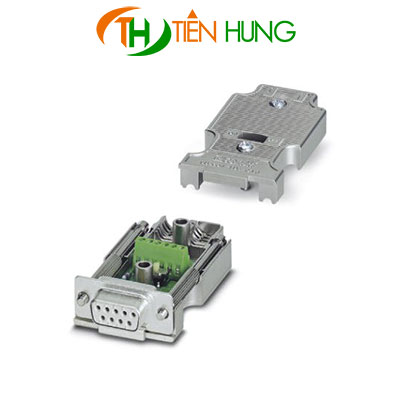

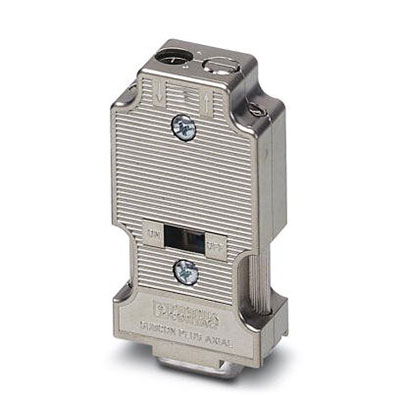

Đại lý Phoenix Contact. Đầu nối D-Sub, 9-POS. Đầu nối female, phiên bản trục với hai đầu nối dành cho dây cáp, hệ thống bus: CAN, CANopen, SafetyBUS; pin assignment: 2, 3, 7. Kết nối SCREW connection. Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com): https://www.phoenixcontact.com Liên hệ để có giá tốt nhất: Mr Vũ: 0908 878 633 Mr Hoàng: 0933 441 466 Mr Di: 0933 744 776 Email: info@tienhungtech.com sales@tienhungtech.com Dimensions Max. cable diameter 8.4 mm Min. cable diameter 7.6 mm Width 17 mm Height 31.5 mm Length 58.2 mm Ambient conditions Ambient temperature (operation) -20 °C ... 75 °C Ambient temperature (storage/transport) -25 °C ... 80 °C Permissible humidity (operation) 10 % ... 95 % (non-condensing) Permissible humidity (storage/transport) 5 % ... 95 % (non-condensing) Altitude ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) Degree of protection IP30 General Nominal voltage UN 5 V Nominal current IN 100 mA Bus system CAN, CANopen, SafetyBus-P Signal CAN CANopen® SafetyBUS p Insertion/withdrawal cycles > 200 SUBCON fixing screws 4-40 UNC Tightening torque 0.4 Nm Torque 0.4 Nm Housing material ABS, metal-plated Pin assignment 2, 3, 7 MTTF 6706 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) 1817 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) 155 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) Connection data Connection D-SUB connection Number of positions 9 Connection method D-SUB socket Termination resistor 120 Ω (Can be connected externally) Torque 0.4 Nm Connection PCB connection Connection method Screw connection Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Min. AWG conductor cross section, flexible 26 Max. AWG conductor cross section, flexible 20 Conductor cross section AWG min. 26 Conductor cross section AWG max. 20 Stripping length 5 mm 2306566 - SUBCON-PLUS-CAN/AX ĐẦU NỐI BUS D-SUB SUBCON-PLUS-CAN/AX - 2306566 - PHOENIX CONTACT
