BỘ NGUỒN QUINT 1PHA 20A 2904602 - QUINT4-PS/1AC/24DC/20 POWER SUPPLY - PHOENIX CONTACT. NHÀ PHÂN PHỐI PHOENIX CONTACT VIỆT NAM. MADE IN THAILAND

Nhà phân phối Phoenix Contact Hồ Chí Minh, Việt Nam. Bộ nguồn Quint đầu vào 1 pha AC, đầu ra 24VDC/20A, mã hàng 2904602 - QUINT4-PS/1AC/24DC/20, vỏ kim loại, gắn được trên thanh DIN rail. Dải điện áp đầu ra có thể điều chỉnh được từ 24VDC đến 29.5VDC, bộ nguồn Quint thế hệ thứ 4 với công nghệ power boost cho phép ổn định dòng ra cực chính xác. SẢN XUẤT TẠI THÁI LAN.
Bộ nguồn QUINT POWER chuyển mạch sơ cấp với tùy chọn đường cong đặc tính đầu ra, công nghệ SFB (ngắt cầu chì có chọn lọc) và giao diện NFC
Đầu vào: 1 pha
Đầu ra: 24 V DC/20 A
Dải điện áp đầu vào danh định: 100 V AC ... 240 V AC
Dải điện áp đầu vào danh định: 110 V DC ... 250 V DC
Phương thức kết nối: Kết nối vít

Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com):
https://www.phoenixcontact.com

SƠ LƯỢC NGUỒN QUINT ( ENGLISH):

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.
The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.

Your advantages

  • SFB technology trips standard circuit breakers selectively, loads that are connected in parallel continue working
  • Preventive function monitoring indicates critical operating states before errors occur
  • Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
  • Easy system extension thanks to static boost; starting of difficult loads thanks to dynamic boost
  • High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
  • Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
  • Worldwide use thanks to the wide range input and international approval package

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

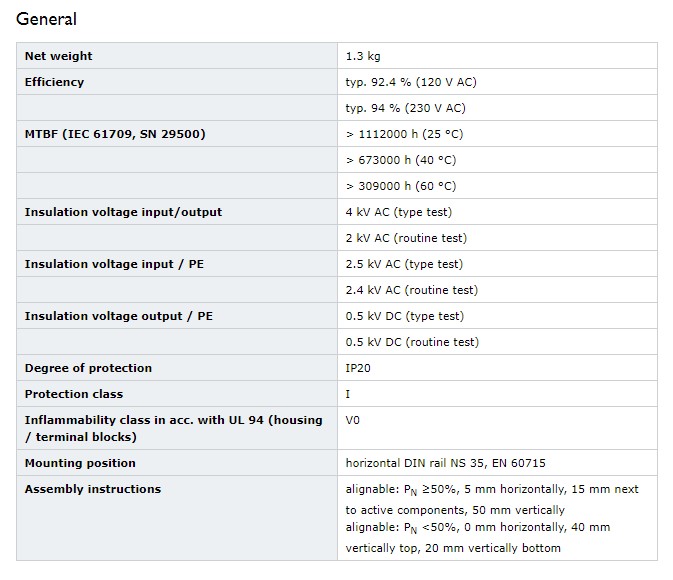

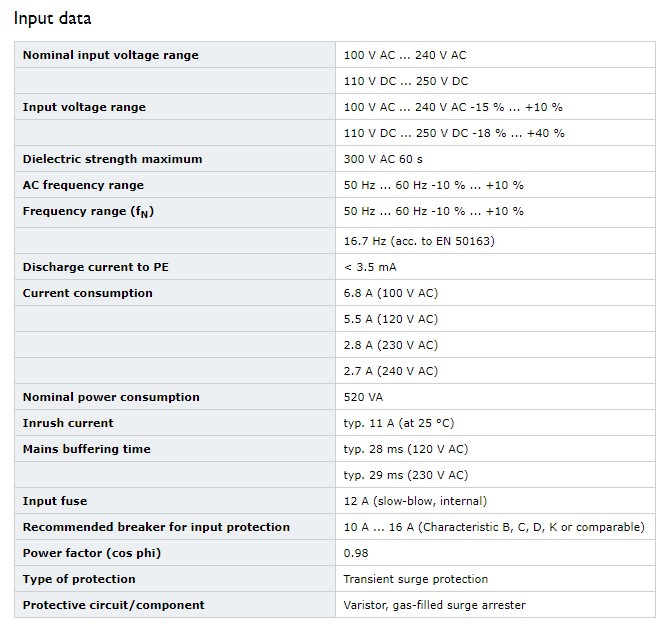

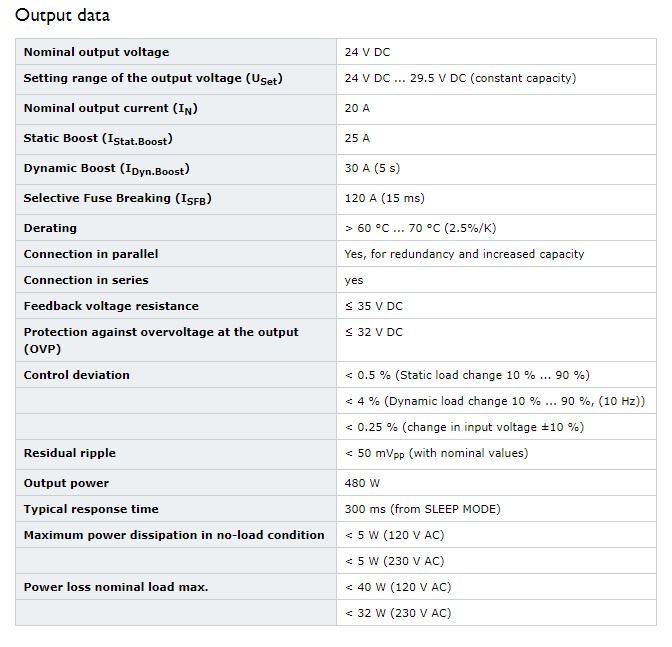

SƠ LƯỢC THÔNG TIN KỸ THUẬT BỘ NGUỒN 2904602 - QUINT4-PS/1AC/24DC/20

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/20 A

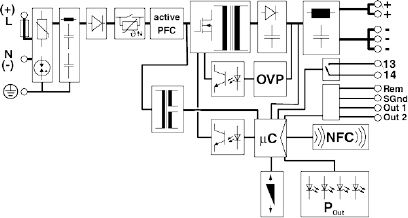

Block Diagram:
