BỘ NGUỒN QUINT 3 PHA 20A - 2938727 - QUINT-PS-3X400-500AC/24DC/20 POWER SUPPLY - PHOENIX CONTACT. NHÀ PHÂN PHỐI PHOENIX CONTACT VIỆT NAM. - MADE IN THAILAND

Đại lý phân phối Phoenix Contact Hà Nội, Việt Nam. Bộ nguồn Quint đầu vào 3 pha AC, đầu ra 24VDC/20A, mã hàng 2938727 - QUINT-PS-3X400-500AC/24DC/20, vỏ kim loại, gắn được trên thanh DIN rail. Dải điện áp đầu ra có thể điều chỉnh được từ 22.5VDC đến 28.5VDC, công nghệ power boost cho phép ổn định dòng ra cực chính xác. SẢN XUẤT TẠI THÁI LAN.

Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com)
https://www.phoenixcontact.com
https://tienhungtech.com/


SƠ LƯỢC NGUỒN QUINT ( ENGLISH):
QUINT POWER is the powerful 60 - 960 W DC power supply unit for universal use. With its wide-range input, single and three-phase versions, and international approval package, this solution is unrivalled. QUINT POWER provides reliable power supply: generously dimensioned capacitors ensure mains buffering of over 20 ms at full load. Full output power is provided by all three-phase devices, even in the event of a permanent phase failure. The Power Boost power reserve easily starts loads with high inrush currents and ensures that fuses are reliably tripped. Preventive function monitoring diagnoses impermissible operating states and minimizes downtimes in your system. Remote monitoring is provided by an active transistor switching output and a floating relay contact. All devices are idling-proof and short-circuit-proof, and are available with a regulated and adjustable output voltage of 12, 24, and 48 V DC with output currents of 2.5, 5, 10, 20, 30, and 40 A. Power supply units for use in Ex zone 2, uninterruptible solutions, AS-i power supply units, and a QUINT diode complete this comprehensive product range.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------

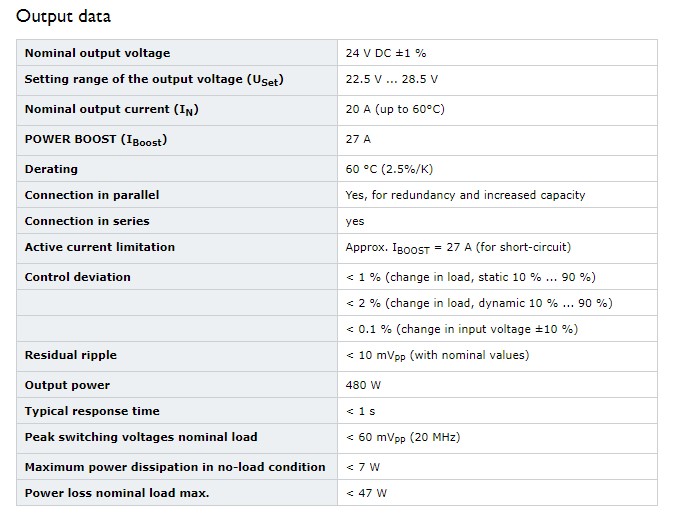

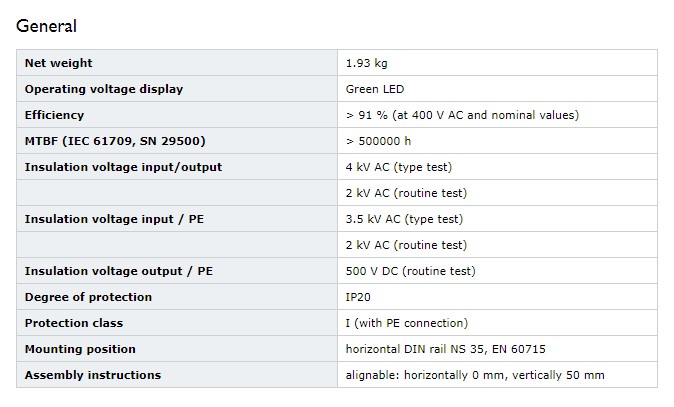

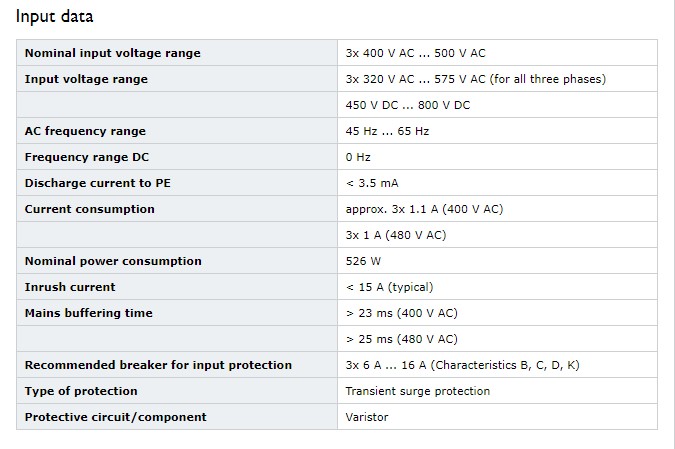

SƠ LƯỢC THÔNG TIN KỸ THUẬT BỘ NGUỒN 2938727 - QUINT-PS-3X400-500AC/24DC/20:

DIN rail power supply unit 24 V DC/20 A, primary switched-mode, 3-phase.

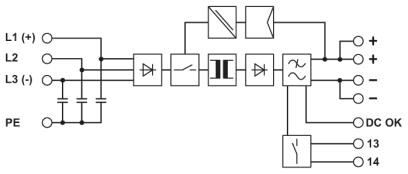

Block Diagram:
