BỘ NGUỒN CHUYỂN ĐỔI 1PHA 5A - 2866747 - QUINT-PS/1AC/24DC/ 3.5 POWER SUPPLY - PHOENIX CONTACT. NHÀ PHÂN PHỐI PHOENIX CONTACT VIỆT NAM - MADE IN THAILAND
Nhà phân phối Phoenix Contact Hồ Chí Minh. Bộ chuyển đổi nguồn từ nguồn 1 pha 240AC sang nguồn 24DC/3.5A, mã hàng 2866747 - QUINT-PS/1AC/24DC/ 3.5, vỏ kim loại, gắn được trên thanh DIN rail. Dải điện áp đầu ra có thể điều chỉnh được từ 18 VDC đến 29.5 VDC, công nghệ power boost cho phép ổn định dòng ra cực chính xác. SẢN XUẤT TẠI THÁI LAN.

Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com):
https://www.phoenixcontact.com

https://tienhungtech.com/

SƠ LƯỢC NGUỒN QUINT ( ENGLISH):
QUINT POWER power supplies with maximum functionality
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.

Your advantages

  • Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
  • Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
  • For superior system availability
  • Preventive function monitoring
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

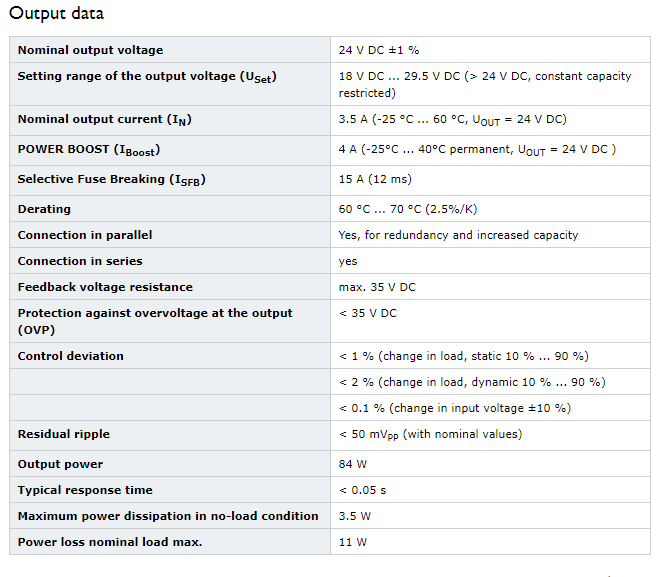

SƠ LƯỢC THÔNG TIN KỸ THUẬT BỘ NGUỒN 2866747 - QUINT-PS/1AC/24DC/ 3.5

Primary-switched QUINT POWER power supply for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/3.5 A

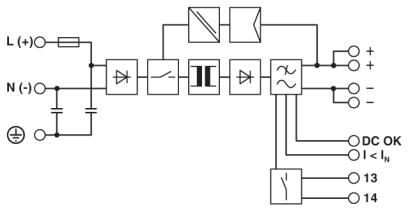

Block Diagram:
