BỘ NGUỒN QUINT 1PHA 15A - 2866718 - QUINT-PS/1AC/12DC/15 POWER SUPPLY - PHOENIX CONTACT. NHÀ PHÂN PHỐI PHOENIX CONTACT VIỆT NAM. - MADE IN THAILAND
Nhà phân phối Phoenix Contact Hồ Chí Minh, Việt Nam. Bộ nguồn Quint đầu vào 1 pha AC, đầu ra 12VDC/15A, mã hàng 2866718 - QUINT-PS/1AC/12DC/15, vỏ kim loại, gắn được trên thanh DIN rail. Dải điện áp đầu ra có thể điều chỉnh được từ 5VDC đến 18VDC, công nghệ power boost cho phép ổn định dòng ra cực chính xác. SẢN XUẤT TẠI THÁI LAN.

Tham khảo catalog chi tiết theo đường link sau ( trích nguồn https://www.phoenixcontact.com):
https://www.phoenixcontact.com/online/portal/pi/?uri=pxc-oc-itemdetail:pid=2866718&library=pien&pcck=P&tab=1&selectedCategory=ALL

 SƠ LƯỢC NGUỒN QUINT ( ENGLISH):

QUINT POWER power supplies with maximum functionality
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.

Your advantages

  • Quick tripping of standard circuit breakers
  • Reliable starting of difficult loads
  • Preventive function monitoring
----------------------------------------------------------------------------------------------------------------------------------------------------------------------

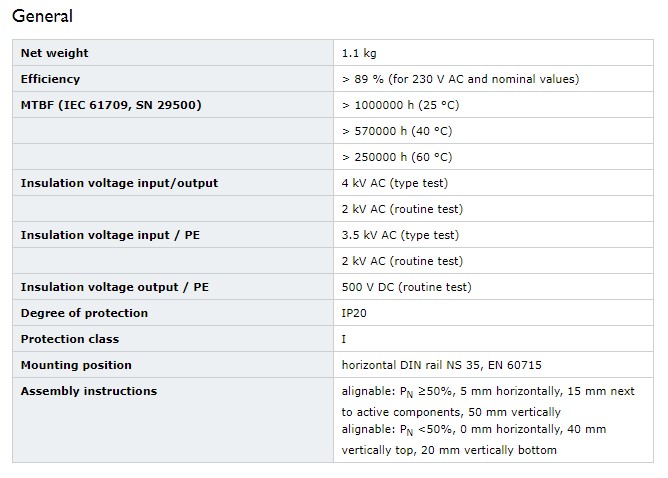

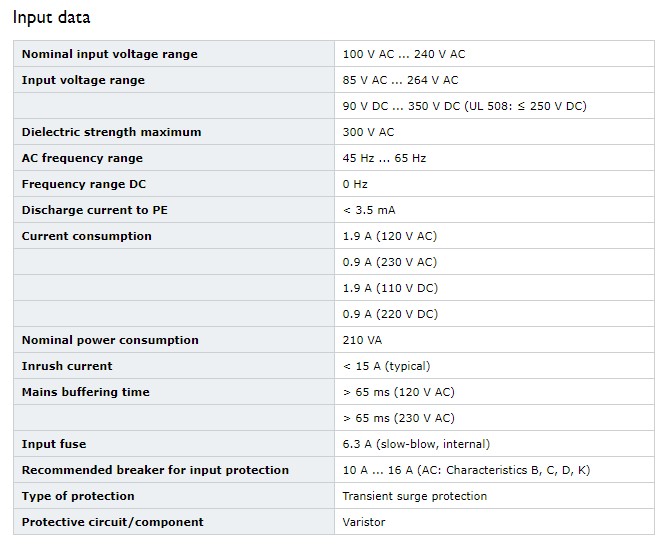

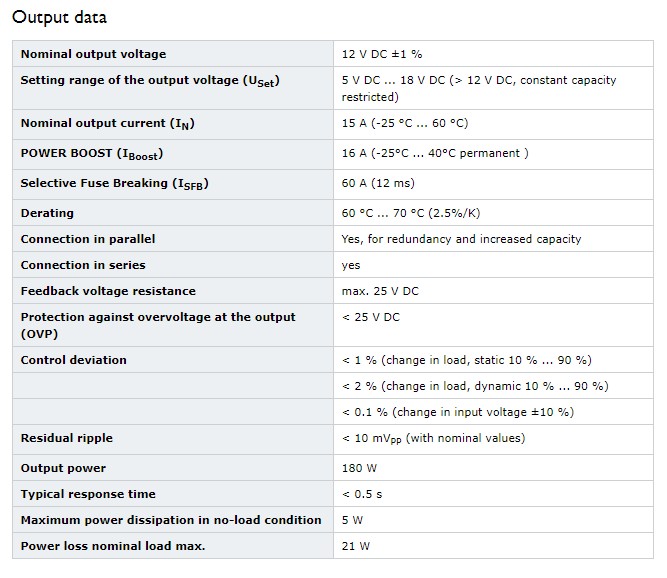

SƠ LƯỢC THÔNG TIN KỸ THUẬT BỘ NGUỒN 2866718 - QUINT-PS/1AC/12DC/15

Primary-switched QUINT POWER power supply for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 12 V DC/15 A

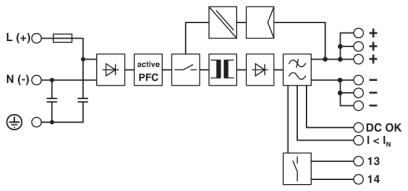

Block Diagram:
